How to Install Knobs on Cabinet Doors in 7 Easy Steps

Do you want to learn how to install knobs on cabinet doors? Cabinet knobs are a practical piece of hardware that often serves as a decorative accent and make a big difference in how your kitchen or bathroom look. The color on your Luxor kitchen or bathroom cabinets would only look fine if the knobs are set evenly.

this guide will help you confidently install cabinet hardware either on new cabinets or upgrading the existing ones. For the proper installation process, use a silicone stencil that fits the corner of a cabinet door and guarantees that all measurements are correct. You can contact us at AllOneKitchen for adequate information on your cabinet knobs.

Materials Needed to Install Cabinet Hardware

You’ll need these materials that are really inexpensive but easy-to-access:

Cabinet knobs

Hardware screws

Drill with the correct bit to drill

Measuring tape or ruler

Pencil

Painter’s tape (masking tape)

Cardboard or paper

Cabinet hardware jig (optional but very helpful)

Screwdriver

These tools provide better control for accurate and clean results.

A Guide on How to Install Knobs on Cabinet Doors

Marking Placement on the Door Frame

Correct placement is key when you install knobs on cabinet doors.

• Place a plastic template or jig on the cabinet door corner near the stile (the vertical frame).

• For upper cabinets, use the bottom corner. For base cabinets, use the top corner.

• Measure the edge and locate the centre.

• Mark the spot using the painter tape and sketch a line using a pencil.

• Measures must be checked twice before drilling.

👉 Tip: When you have no jig then make your own template with the aid of cardboard. This helps maintain consistent placement across multiple doors.

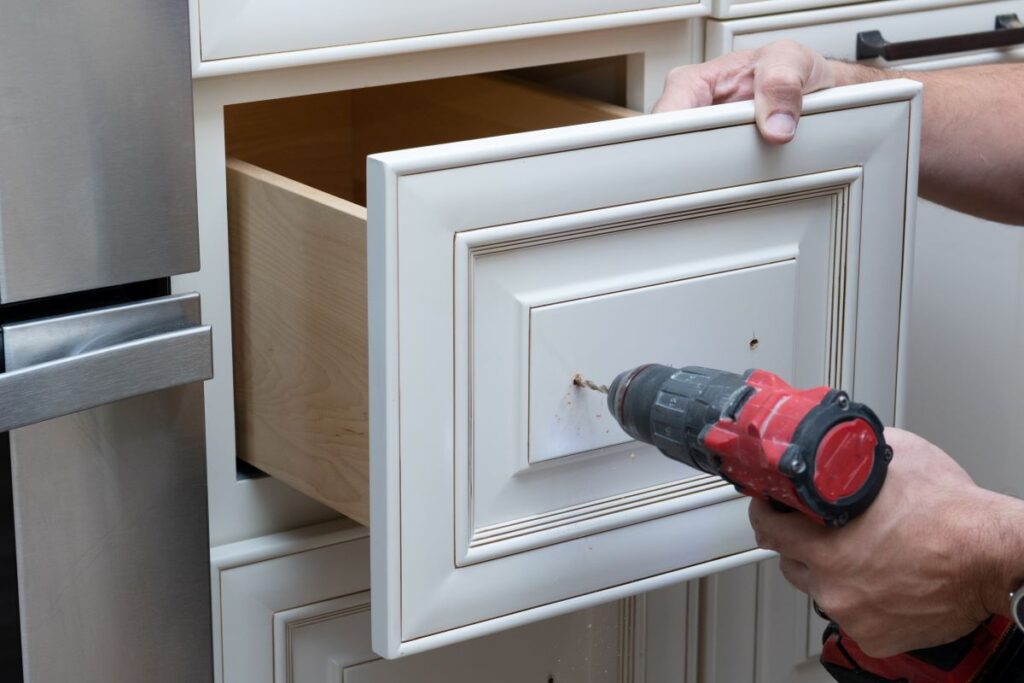

 How to Drill Holes Accurately

• Take the door template off. Drill a hole where you marked it with a drill bit in the same length as the screws you want to use to mount the knobs.

• Drill steadily via the cabinet door where you’ve made the label. To avoid splintering the wood, use extra caution as the drill bit emerges from the backside of the door. Label and drill straight in the remaining cabinet doors.

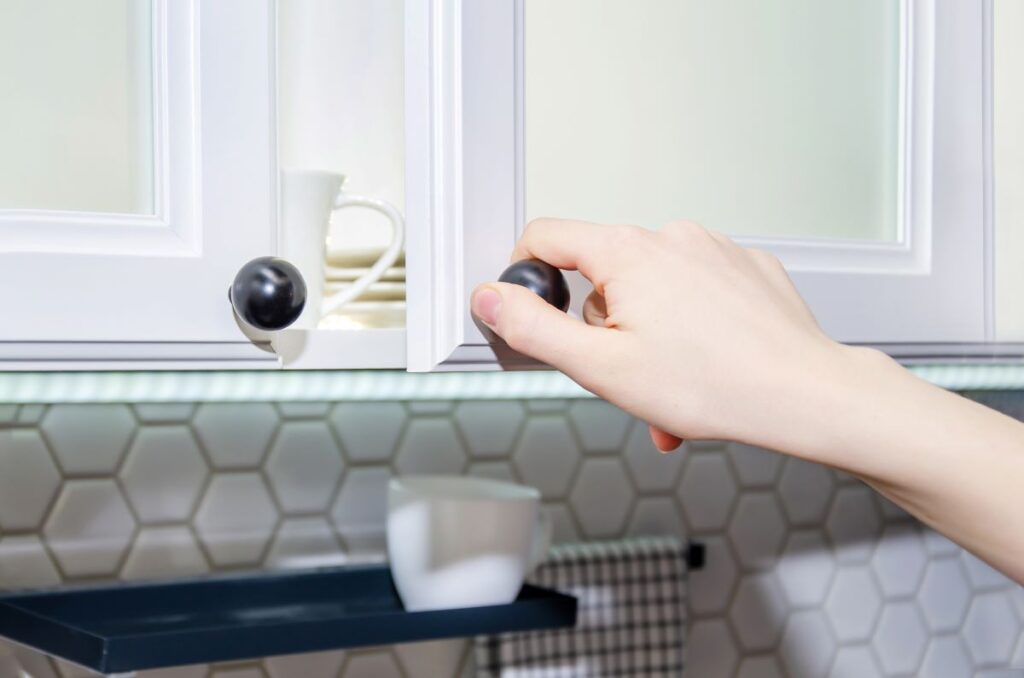

Installing Cabinet Knobs

• With one hand, place a knob on the front of a door and cover the opening with the other. Insert a screw from the back of the hole on the other side. Screw it into the knob and the door. Start with your fingertips and work your way up to a screwdriver. Tighten the screw until the knob is firmly in place.

• In the same manner, connect the remaining knobs.

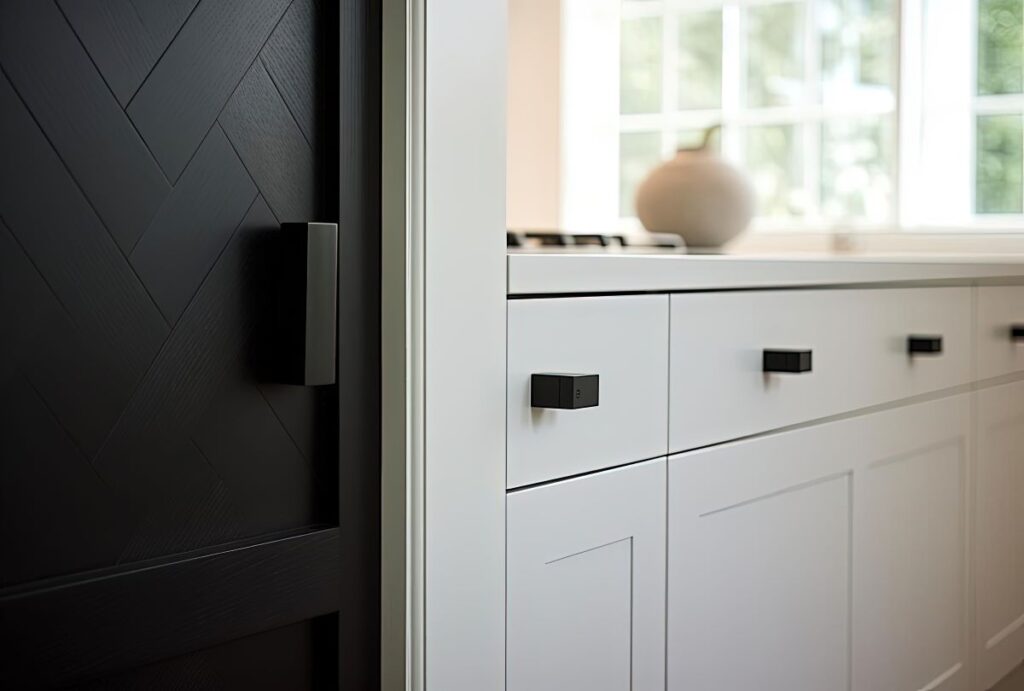

Installation of Pulls and Cabinet Handles

Installing pulls or cabinet handles is also a similar process but it needs a little more accuracy.

• Measure the distance between screws in the handle (two screws).
• Measure and mark the second hole after marking the first one.
• Pulls are fitted on the drawers normally lying horizontally and on the door normally lying vertically.
• Create alignment of both holes by ensuring that the holes are perfectly aligned before drilling.

This is of particular concern to very long drawer fronts where any inconsistency can be very conspicuous.

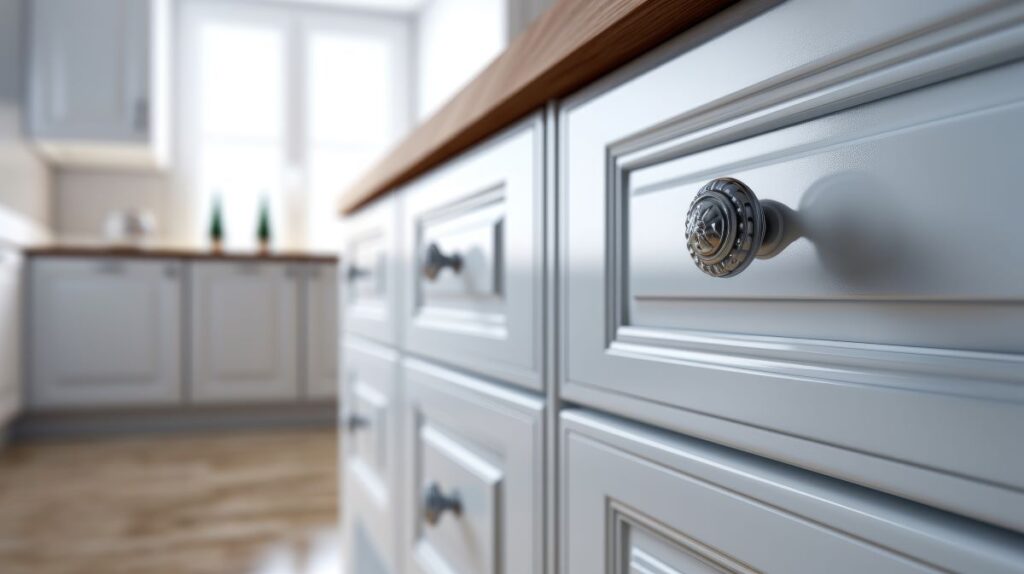

Installation of Hardware on Drawer Fronts.

For drawers:

• Measuring the width of the drawer, you divide it in half and obtain the middle point.
• Pulls usually present themselves perfectly in the centre both horizontally and vertically.
• The knobs may be placed in the center or slightly higher basing on the drawers height.
• Minor changes in this can assist in enhancing the overall appearance and functionality.

Choosing the Right Cabinet Knobs.

When choosing cabinet knobs:

1. Door style and width
2. Trim that is to match other cabinet handles.
3. Which type of knobs or pulls are more appropriate to each door or each drawer

Doors are frequently fitted with knobs, and drawers and drawer fronts are frequently fitted with pulls, but any combination of styles may be used as long as the location and style is the same.

Common Placement Tips That Professionals Use

Keep placement the same for all doors or drawers

Match knob and handle styles throughout the room

Speed and accuracy – use a jig or template

Watch videos if you’re a visual learner-many step by step tutorials are available to you in the market

These little details help to create a clean, professional finish.

FAQs: Installing Knobs in Cabinet Doors

Conclusion

When you want to install knobs on cabinet doors, please take your time. Measure carefully and always double check before drilling. Properly installed cabinet knobs don’t just make a cabinet more functional – they also make your kitchen or bathroom look better.
